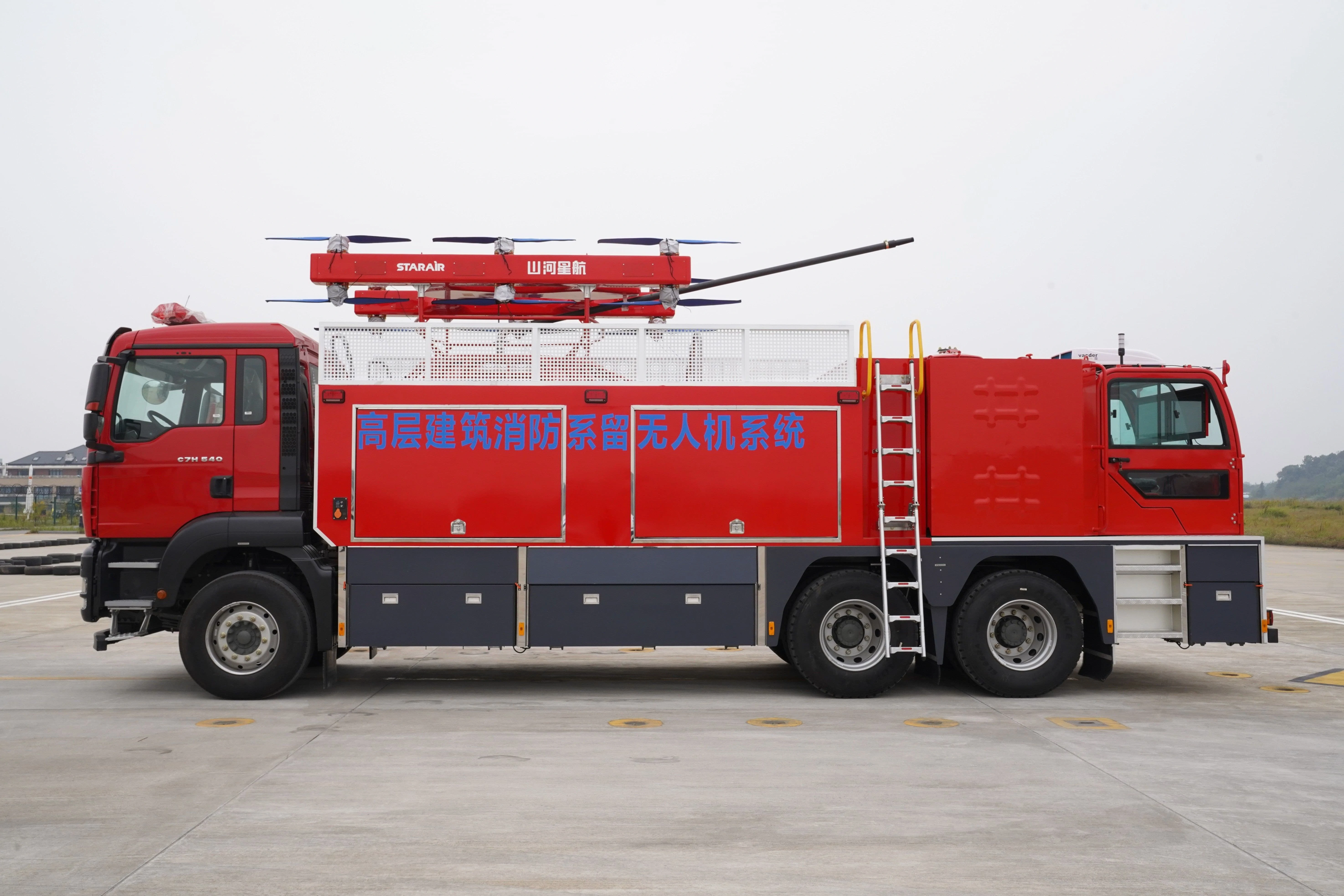

Tethered UAV Fire Truck

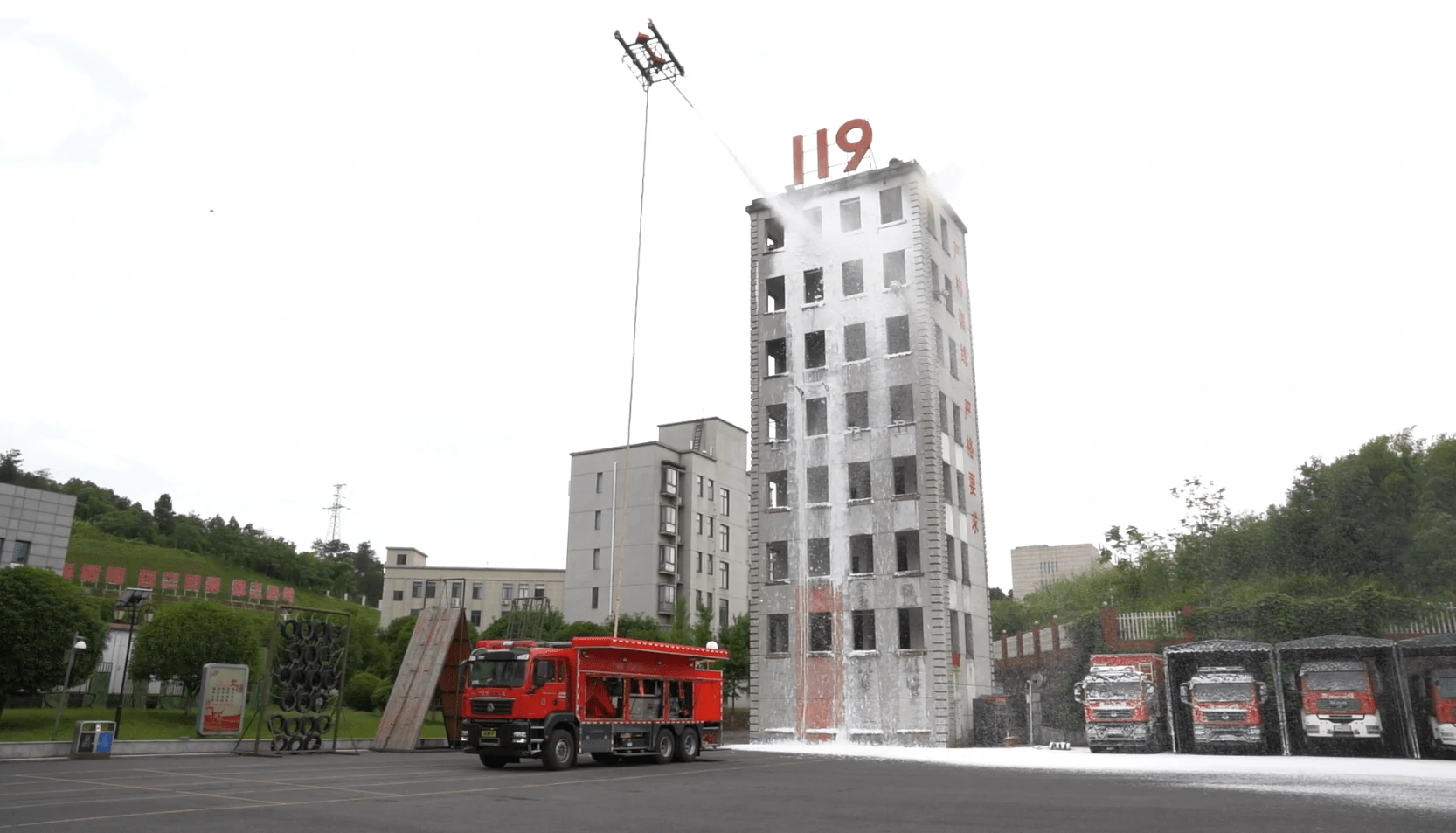

"Tethered UAV Fire Truck" is a new-type fire rescue equipment developed to address the challenges of high-rise building fire extinguishing. The integrated system combines a heavy-lift tethered UAV with a ground fire truck: the tethered UAV serves as an aerial fire-extinguishing operation platform, while the fire truck provides power and fire-extinguishing agent supply for the UAV. The system can quickly reach fire sites; the UAV takes off and lands autonomously on the roof of the fire truck, and performs continuous fire-extinguishing agent spraying operations at an altitude of 200 meters, enabling continuous suppression and extinguishing of high-rise building fires.
Fire Cannon Flow Rate
20 Liters/Second
MAXIMUM OPERA- TING ALTITUDE
200 meters(Foam extinguishing)
Wind Resistance Level
≥6 (Constant wind) /8 (Gust wind)
On-site Prepara-tion Time
≤4 minutes
Continuous Operation Time
≥8 hours
Water Tank Capacity
4000 liters
Tethered UAV Fire Truck Parameters
Maximum Operating Altitude
200 meters(Foam extinguishing)
Foam Extinguishing Agent Flow Rate
200 L/min (200m high)240 L/min (150m high)350 L/min (50m high)
Fire Cannon Flow Rate
20 Liters/Second
Foam Liquid Tank Capacity
1000 liters
Maximum Takeoff Weight of the drone
570 kg
Foam Extinguishing AgentSpray Distance
25 m
On-site Preparation Time
≤4 minutes
Fully Loaded Vehicle Weight
25.6 Tons
Continuous Operation Time
≥8 hours
Water Hose Diameter
50mm
Wind Resistance Level
≥6 (Constant wind) /8 (Gust wind)
Fire Truck Dimensions (L x W x H)
10.1 m x 2.54 m x 3.9 m
Water Tank Capacity
4000 liters
Other Functions
Vehicle-mounted fire cannon,fire scene lighting, glass breaking

Core Advantages

  • Fire-fighting height over 200 meters
  • Rapid deployment & operation within 3 minutes
  • Sustained operation capability
  • Intelligent take-off & landing
  • Real-time on-site fire situation transmission
  • Redundant fault-tolerant flight control
  • Wind resistance up to Level 6
  • Adaptable to narrow urban spaces

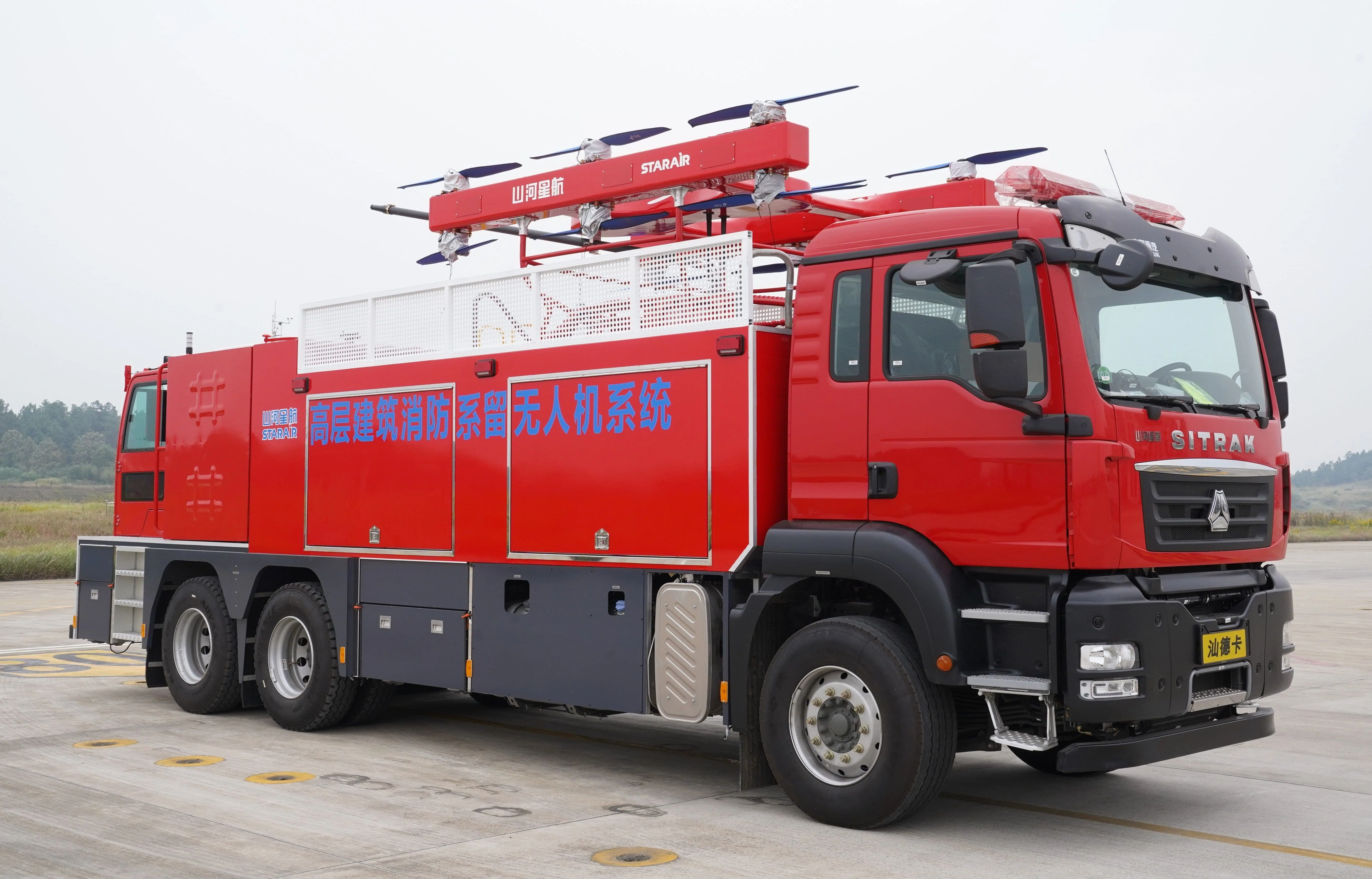

Compressed Air Foam Fire Truck

It is equipped with a Sinotruk Sitrak 6×4 special chassis, a high-flow on-board compressed air foam fire-extinguishing system, an on-board fire monitor system, an integrated water-electricity-optical tethered cable, an automatic cable retraction system, an on-board high-power generator, on-board backup batteries, a 4,000L water tank and a 1,000L foam concentrate tank, as well as an independent operation cabin. It is fully applicable to fire rescue tasks in cities, towns, industrial and mining enterprises, petrochemical facilities, etc.

Fire-Fighting Tethered UAV

A 570kg-class heavy-lift tethered UAV platform, an anti-disturbance autonomous flight control system, a high power-to-weight ratio electric propulsion system, coaxial special propellers, a tri-sensor pod, an airborne lighting system, a remote-controlled nozzle and a compressed air glass-breaking system. It is suitable for high-altitude emergency rescue and fire-fighting material transportation. Integrated with ground fire trucks, it builds an air-ground integrated operation platform, effectively solving the problem of urban high-altitude fire rescue.
